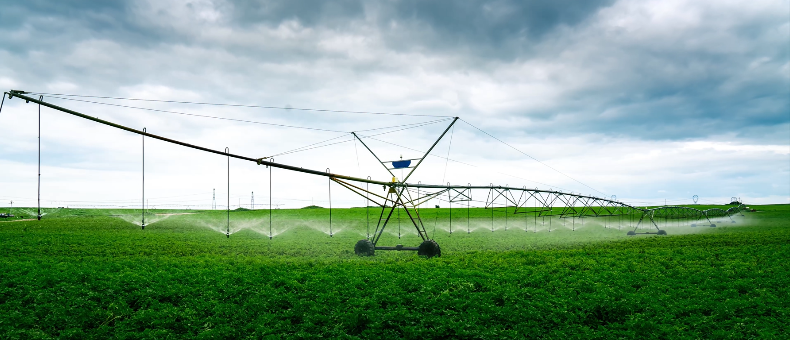

This 291m pivot irrigation project was designed for efficient irrigation of large-scale farmland. The system is suitable for crops such as wheat, corn, rice, soybeans, potatoes, vegetables, alfalfa and forage grass.
The machine adopts a reinforced V-shaped tower structure for stable operation in different farmland conditions. The truss structure is manufactured from high-strength hot-dip galvanized steel for long-term outdoor use and corrosion resistance.
The irrigation system can be equipped with imported sprinkler packages including Nelson and Komet nozzles. Optional UMC drive motors and wheel gearboxes are available according to project requirements.
The control system uses reliable irrigation control technology for stable operation and convenient field management. Functions such as automatic shutdown and fault alarm help improve irrigation safety and working efficiency.
Both electric power and diesel generator systems can be used as supporting power sources, making the machine suitable for remote agricultural areas without stable electricity supply.
Core Components
Reliable Core Components for Stable Fiedl Operation
The long-term performance of a pivot irrigation system depends heavily on the reliability of its core components. Easton pivot systems use durable structural materials and stable irrigation components for continuous field operation.

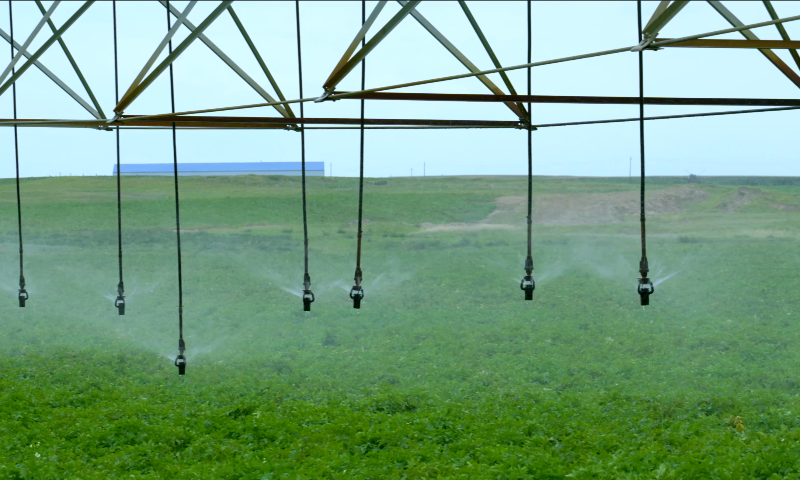

• Sprinkler Package
The system can be equipped with NELSON, KOMETor SENNINGER I-WOB sprinkler packages for uniform water distribution and efficient irrigation performance.
Different sprinkler configurations are available according to crop types, soil conditions and irrigation requirements.
• Drive Motor
Optional UMC drive motors provide stable movement and reliable operation during long-term irrigation work.
The drive system is suitable for continuous field operation and helps maintain smooth machine movement on uneven farmland.
• Wheel Gearbox
Heavy-duty wheel gearboxes help maintain stable movement and improve operation reliability in large farmland irrigation projects.
The system is suitable for long working hours under different agricultural conditions.
• Control System
The control panel adopts reliable irrigation control technology for stable operation and easy field management.
Functions such as automatic shutdown, fault alarm and irrigation control help improve operation efficiency and irrigation safety.
• Hot-Dip Galvanized Steel Structure
The truss structure is manufactured from high-strength hot-dip galvanized steel for corrosion resistance and long service life.
The reinforced V-shaped tower structure improves overall machine stability during irrigation operation.
| Equipment Length | R=291 meters |
| Span Configuration | 54.9m x 5 spans (Pipe diameter ϕ168mm) + 16.5m x 1 overhang |
Sprinkler Brand | NELSON (America). KOMET KPT (Austria). I-WOB (China brand). |
| Drive Motor & Reducer | UMC |
| Control Panel | Mechanical type. Touch screen with remote control. |
| Irrigation Quota | 8-12 mm/day |
| Towable Pivot Point Options | 3-Wheel Tow, 4-Wheel Tow |
| Booster Pump Options | 2 HP, 5 HP, 7.5 HP |
| Tire size options | 14.9-24, 16.9-24 |
| Crop Clearance Profile Options | Low, standard, high and ultra-high |
Control Panel Voltage | Three-phase 380V, 415V, 460V. |
Real Project Video
291m Pivot System Running After Installation
Field operation video shared by customer after installation of the drive system.
The video shows stable machine movement and normal irrigation operation under actual farmland conditions.

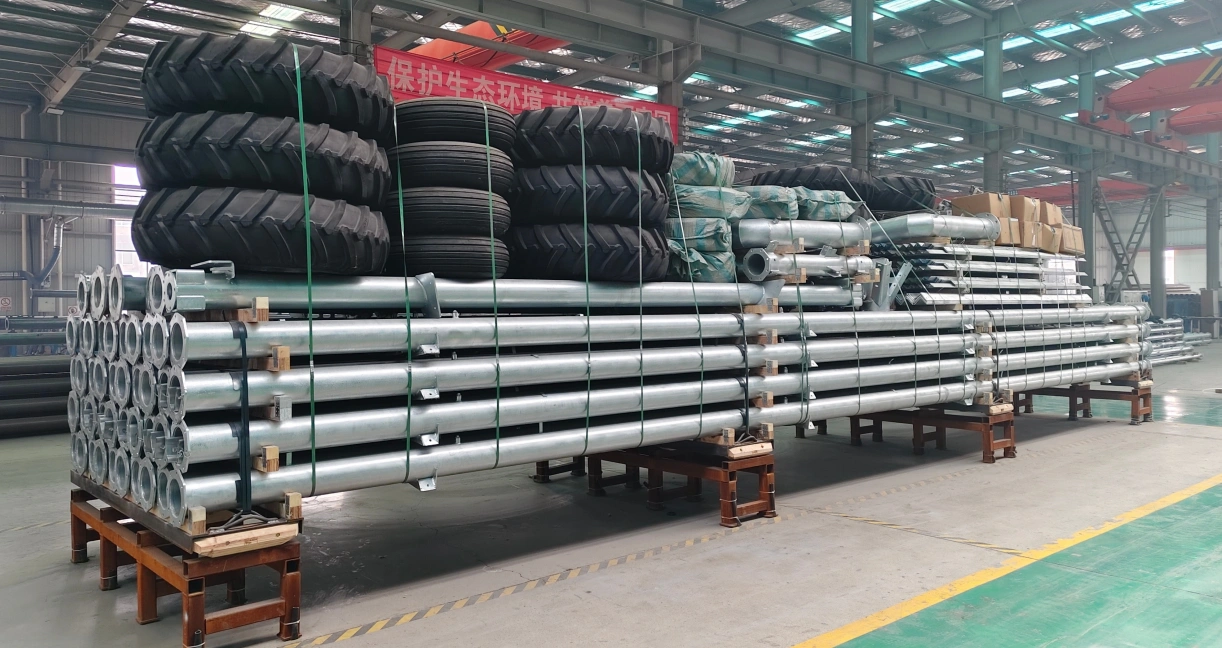

Container Loading & Delivery
Ready for Overseas Delivery
The pivot irrigation system is securely packed and loaded for international shipment to ensure safe transportation and convenient installation at customer sites.
FAQ
Frequently Asked Questions
Can the pivot irrigation system work with diesel generators?
Yes. Both electric power and diesel generator systems can be used as power sources, making the machine suitable for remote agricultural areas without stable electricity supply.
What crops are suitable for pivot irrigation?
The system is suitable for wheat, corn, rice, soybeans, potatoes, alfalfa, vegetables, sugar cane, forage grass, cotton and other field crops.
Is the machine suitable for uneven farmland?
Yes. The reinforced structure and drive system allow stable operation under uneven farmland conditions.
Can fertilizer be applied during irrigation?
Yes. The system can be used for simultaneous irrigation and fertilizer application.
Are spare parts available?
Yes. Spare parts and technical support are available for overseas customers and distributors.
Is installation guidance available?
Yes. Installation guidance, operation manuals and technical support can be provided for overseas projects.
