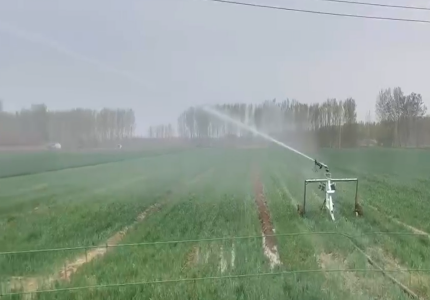

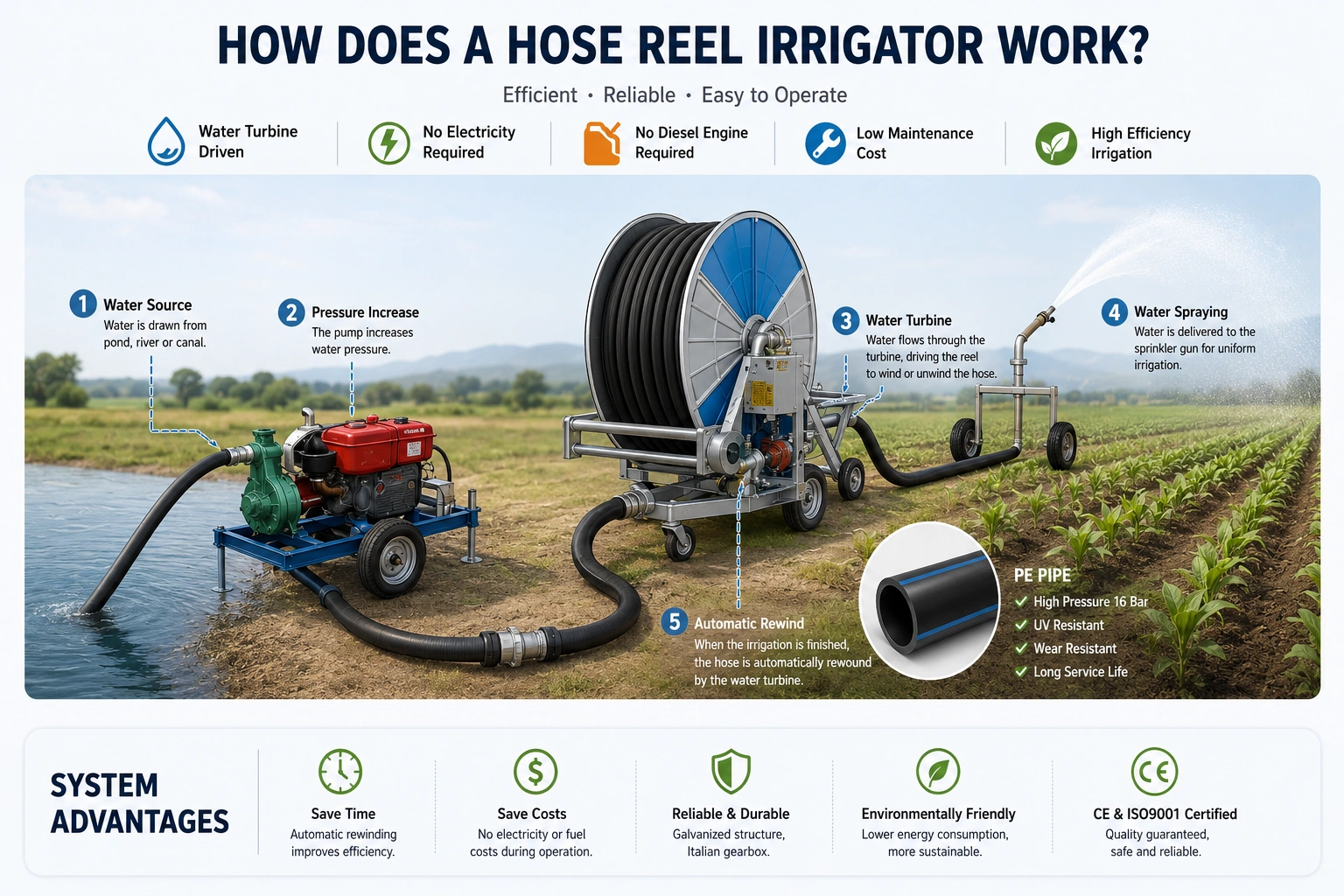

JP series hose reel sprinkler irrigation system, driven by water turbine, combined Italian CASELLA impact turbine direct-connected four speed gearbox technology, used Italian original four speed direct-connected gearbox, with the chassis and frame are crafted from outstanding corrosion resistance and high strength 304 stainless and treated with the hot-dip galvanizing process, specially designed for efficient agricultural farming irrigation. It is an irrigation equipment with PE pipe winded around the winch. It uses irrigation pressure water to drive water turbine which drives winch to rotate through the transmission and the winch pulls sprinkler cart to achieve automatic travelling and spray. We designed the turbine to be connected directly to the gearbox, this keeps the pressure absorption to a minimum, allowing the machine to run more smoothly. Travelling hose reel sprinkler irrigation machine are available in a range of models, including JP75-300, JP75-350, JP75-400, JP75-450, JP75-500, JP90-300, JP90-350, JP90-400, JP90-450. They are easy to move and can cover large areas, making them suitable for different field sizes. It is widely used in large and medium scale farmland operation irrigation, garden, urban green space, fruits and vegetables, tea, forage, tobacco, sugar cane, and power plants, wharf, construction sites, coal dust removal and other fields. Easton Irrigation Machinery company has got you covered.
JP75-300 Water Turbine Driven Hose Reel Irrigation Machine - Easton Irrigator

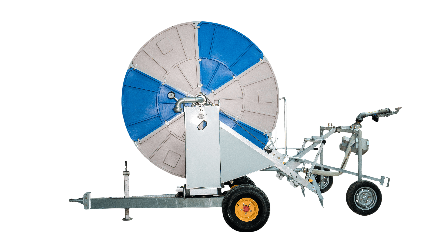

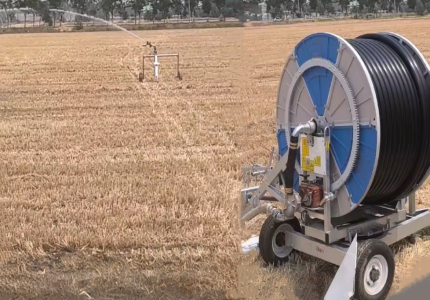

The JP75-300 is a highly efficient, turbine-driven hose reel irrigation machine, designed for agricultural applications. It features a 75mm diameter, 300 meters high pressure PE pipe, ensuring stable water flow and wide coverage. It is ideally suited for small to medium-sized farms with irrigation needs of up to 10 hectares. Irrigate smarter, not harder, no electricity, suitable for wheat, corn, cotton, as well as lawns, orchards, and pastures.
Key Benefits
• No electricity required. Ideal for remote areas or farms without stable power supply. The water turbine drive saves energy and reduces costs.
• Covers up to 10 hectares. Perfect for small-to medium farming.
• Powerful and uniform. The 75mm high-pressure PE pipe ensures strong water flow and even distribution for healthier crops, minimizing water waste.
• Built to last. The chassis and frame features a robust, corrosion-resistant, high-strength stainless with hot-dip galvanizing treatment, long-term performance.
• Sprinkler uniformity coefficient≥85%. It ensures consistent water distribution across the field, improving crop yield and quality.
• Easy operation. Designed for simple setup and use, saving labor and time.
• Highly mobile. Compact design allows for easy and quick movement between different fields as needed.
Specifications Table
| No. | Item | Unit | JP75-300 |
| 1 | Driven mode | / | Water turbine driven |
| 2 | PE pipe diameter | ϕmm | 75 |
| 3 | PE pipe length | m | 300 |
| 4 | Inlet working pressure | Mpa | 0.5-1.0 |
| 5 | Nozzle pressure | Mpa | 0.25-0.5 |
| 6 | Nozzle diameter | ϕmm | 16-22 |
| 7 | Nozzle flow rate | m3/h | 13-38 |
| 8 | Rain gun range | m | 27.6-43 |
| 9 | Spray width | m | 47-74 |
| 10 | Interlayer velocity difference | % | <20 |
| 11 | Precipitation | mm | 8-50 |
| 12 | Nozzle type | / | PYC50 |
| 13 | Nozzle cart wheel distance | mm | 1,300-2,800 |
| 14 | Nozzle cart height | mm | 1300 |
| 15 | Cart climbing grade | % | 20 |
| 16 | Traction height | mm | 300-500 |
| 17 | Ground clearance | mm | 300 |
| 18 | Chassis tires & rims | / | 185R & 14c |
| 19 | Maximum under-wheel width | mm | 2000 |
| 20 | Control travelling speed | m/h | 8-60 |
| 21 | Combined spray uniformity | % | ≥85 |
| 22 | Weight | kg | 1550 |
| 23 | Weight (with water) | kg | 2450 |
FAQ
Q1: What is the maximum area it can irrigate per day?
It can irrigate about 5 hectares one day, depending on hose length, water pressure, flow rate, spray radium and field conditions.
Q2: Is the water distribution uniform?
With a uniformity coefficient ≥85%, it ensures consisten water coverage across the field.
Q3: What is the best terrain for this machine?
It performs best on relatively flat land, but can also be used on gently sloping fields.
Q4: Can this irrigator work on sloped land?
Yes. It is designed with a climbing capacity of 2%-20%, enabling stable operation on sloped terrain to meet various field requirements.
Q5: Dose this irrigation machine require electricity?
No external power needed, it is driven by a water turbine and uses the pressure of the water itself.
Q6: Can one person operate it?
Yes, it is designed for easy operation by a single person.
Q7: How long is its service life?
With stainless steel and hot-dipgalvanizing, it can last over 10 years.
Q8: Does it require frequent maintenance?
Minimal maintenance needed - just regular checks of hose, nozzles and reel.
Q9: Can it save water?
Yes, it saves over 30% water compared to traditional irrigation methods.
Q10: Which crops is it suitable for?
Suitable for wheat, corn, cotton, potatoes, lawns and many other crops.
Q11: How do I choose the right pump for this system?
The pump should be matched based on the required flow rate and pressure. Our team can provide you with specific pump recommendations.
Q12: What size of tractor is needed to pull this equipment?
A tractor with 30 HP or more is enough.
Q13: Does this equipment come with a toolbox?
Yes, it does.
Q14: Can the machine automatically recycle PE pipes?
Yes, just set the gear to the recycling position and the machine will start to recyle.
Q15: Can the spraying range be adjusted?
Yes. Change nozzles or adjust water pressure to modify spray radius and flow for different crops.
Q16: Why choose a reel irrigation machine over other irrigation methods?
It’s mobile, covers large areas, saves water and electricity, and has low maintenance costs.
Q17: How to choose the right model?
Consider field size, field length, crop type, water pressure and terrain conditions.
