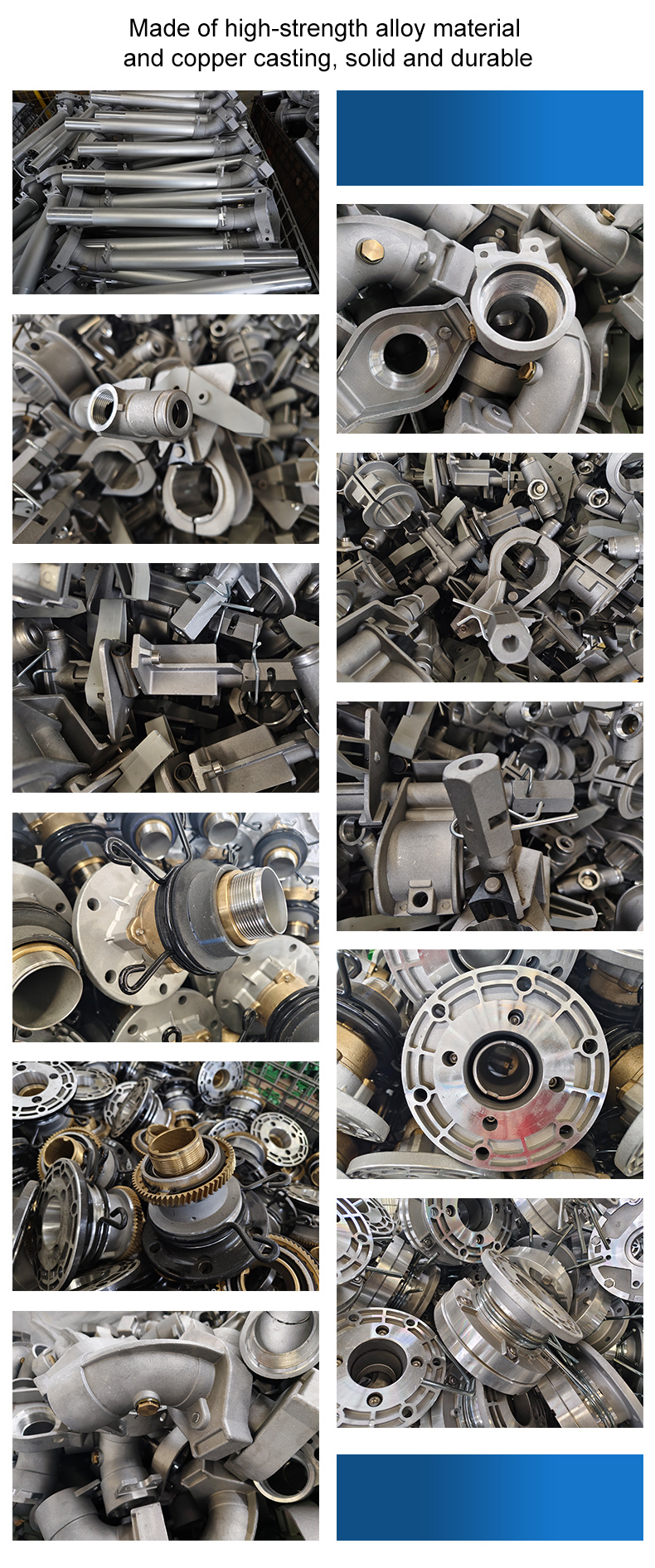

ET80 vertical impact sprinkler manufactured with durable, high strength alloy and copper casting materials, possessing excellent structural strength and corrosion resistance. It is a remarkable sprinkler in fields such as agricultural irrigation and industrial dust suppression, winning the favor of users with its excellent design and superior performance. Agricultural Irrigation: It is suitable for various agricultural planting areas such as farmland, orchards, and vegetable greenhouses. It can provide efficient and uniform irrigation for crops, meet the water needs of different crops at different growth stages, and help increase agricultural production and income. Industrial Dust Suppression: In industrial sites prone to dust generation such as coal mines, mixing stations, construction sites, and port terminals, the ET80 spray gun can effectively reduce the dust content in the air, improve the working environment, reduce the harm of dust to the health of workers, and also meet environmental protection requirements.
| Items | Parameters |
| Inlet size / Base | 80 flange |
| Working pressure | 0.15 - 0.8 Mpa |
| Trajectory angle | 16° - 46° adjustable |
| Water flow | 31.3 - 174 m3/h |
| Throw / Shooting radius | 23 - 80 m |
| Nozzle diameter | Working pressure | Water flow | Shooting radius |
| mm | kg/cm2 | m3/h | m |
| 22 | 3 | 31.3 | 23 |
| 4 | 36.2 | 25 | |
| 5 | 40.5 | 29 | |
| 6 | 44.4 | 32 | |
| 24 | 3 | 37.3 | 27 |
| 4 | 43.2 | 32 | |
| 5 | 48.3 | 36 | |
| 6 | 52.9 | 39 | |
| 26 | 3 | 43.9 | 29 |
| 4 | 50.7 | 33 | |
| 5 | 56.7 | 37 | |
| 6 | 62.2 | 41 | |
| 28 | 3 | 50.9 | 30 |
| 4 | 58.8 | 35 | |
| 5 | 65.7 | 39 | |
| 6 | 72.1 | 43 | |
| 30 | 3 | 58.4 | 37 |
| 4 | 67.6 | 41 | |
| 5 | 75.6 | 45 | |
| 6 | 82.4 | 48 | |
| 32 | 4 | 76.9 | 54 |
| 5 | 85.9 | 58 | |
| 6 | 94.2 | 62 | |
| 7 | 101.6 | 66 | |
| 34 | 5 | 97.1 | 59 |
| 6 | 106.4 | 64 | |
| 7 | 114.8 | 68 | |
| 8 | 122.8 | 72 | |
| 36 | 5 | 108.8 | 61 |
| 6 | 119.3 | 66 | |
| 7 | 128.6 | 70 | |
| 8 | 137.7 | 74 | |
| 38 | 5 | 121.3 | 63 |
| 6 | 132.9 | 68 | |
| 7 | 143.4 | 72 | |
| 8 | 153.5 | 76 | |
| 40 | 5 | 134.4 | 66 |
| 6 | 147.3 | 70 | |
| 7 | 158.9 | 76 | |
| 8 | 170 | 80 |
• Strong Wind Resistance
The vertical rocker arm structure design of the ET80 spray gun endows it with outstanding wind resistance performance. It can still work stably in windy environments, ensuring the uniformity and stability of spraying, and reducing the problem of uneven irrigation or dust suppression caused by wind influence.
• Flexible Angle Adjustment
It can achieve 360° full - circle rotation. During the rotation process, the angle can be flexibly adjusted according to actual needs. Whether it is fan - shaped spraying or full - circle spraying, it can easily meet different site and operation requirements.
• Efficient Irrigation and Dust Suppression
It has a large water output, with a spraying radius of up to 80 meters, which can cover a large working area. This effectively improves the efficiency of irrigation and dust suppression, quickly and evenly providing water for crops or carrying out dust suppression treatment for industrial sites.
• Uniform and Fine Spraying
The multi - nozzle design ensures uniform spraying at both near and far distances, ensuring that every corner can be fully irrigated or dust - suppressed, avoiding situations such as local drought or untreated dust.
• Convenient Rotation Speed Adjustment
The rotation speed can be adjusted quickly. Users can flexibly control the rotation speed of the spray gun according to actual needs, such as the water requirements of different crops and the dust suppression requirements of different industrial sites, to achieve the best operation effect.
• Easy to Operate
The simple and easy - to - understand operation design enables even those without professional technical knowledge to quickly get started, facilitating users to operate and adjust in actual use.
• High Cost - Performance Ratio
While providing excellent performance and reliable quality, the price is reasonable. Compared with similar products, it has a higher cost - performance ratio, saving users' procurement costs.
